SSR-0125

Imperiaal Opening/overlapping enkel gewikkeld Single-Turn Wave Spring Standard, for 0.960" Shaft Diameter, 0.078" Compressed Height

Customize Part

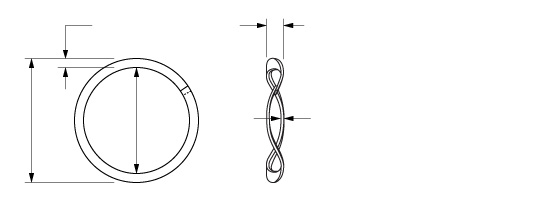

Illustration of an Overlapping Single Turn Wave Spring

b

hf

Ds

Db

t

Specifications
Part Number
SSR-0125
Spring Type
  • Overlap
Db: Operates in Bore (in)
1.250
Ds: Clears Shaft Diameter (in)
0.960
Load (lb)
22.00
Work Height (in)
0.078
Hf : Free Height REF. (in)
0.150
Number of Waves/Turn
3.0
Number of Turns
1
Number of Shims
0
t: Wire Thickness (in)
0.016
b: Wire Radial Wall (in)
0.133
Spring Rate REF. (lbs/in)
306.00
Standard Materials
Carbon Steel SAE 1070-1090, 17-7 Stainless Steel

Product Overview

SSR-golfveren van het overlappingstype met enkele winding worden in een grote verscheidenheid aan toepassingen gebruikt. Bij korte doorbuigingen en lage tot middelgrote krachten functioneren ze met precisie en betrouwbaarheid.

Request Samples Request Quote Quality Certificates
