To request a quote, sample, CAD model, or to customize a part for your application, click the desired part number from the table below.
The Smalley part database is not material-specific. The part you have searched for may be available in carbon steel or stainless steel. Please specify the desired material when requesting a quote or samples:
- For Spirolox, Constant Section, and Hoopster rings, add "-S02" to designate 302 stainless steel (Example: VH-100-S02)
- For Spriolox, add "-S16" to designate 316 stainless steel. (Example: VH-100-S16)
- Tapered Section Rings are only available in carbon steel.

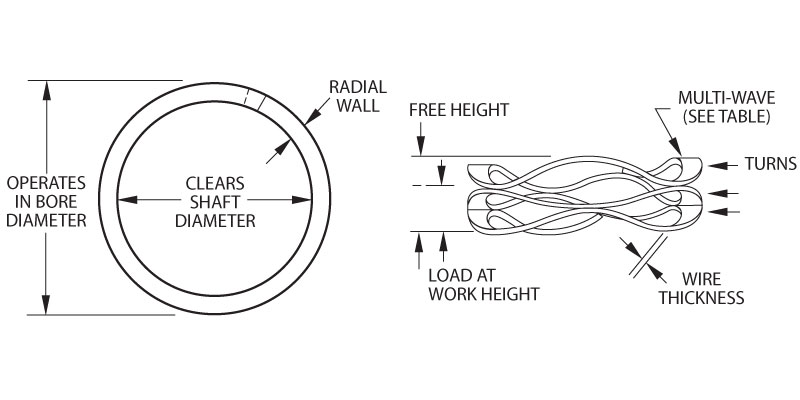

- For wave springs, add "-S17" to designate 17-7 stainless steel. (Example: C150-L2-S17).
*Please note for wave springs: the Free Height listed is a reference dimension, and Spring Rate listed is a theoretical dimension.
Currently viewing imperial results

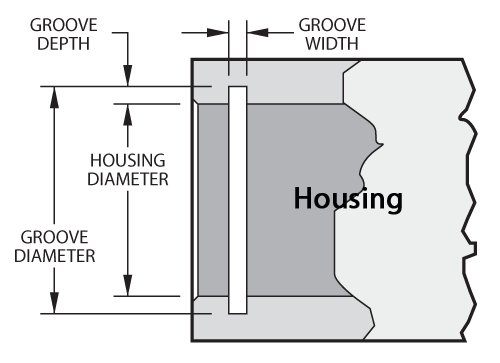

| Preview Image | Part Number | Application Diameter (in) / | Ring Shear (lb) / | Groove Yield (lb) / | Ring Diameter (in) / | Radial Wall (in) / | Ring Thickness (in) / | Groove Diameter (in) / | Min Groove Width (in) / | Turns / | Crimp |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSHE-025-CSOP-BX

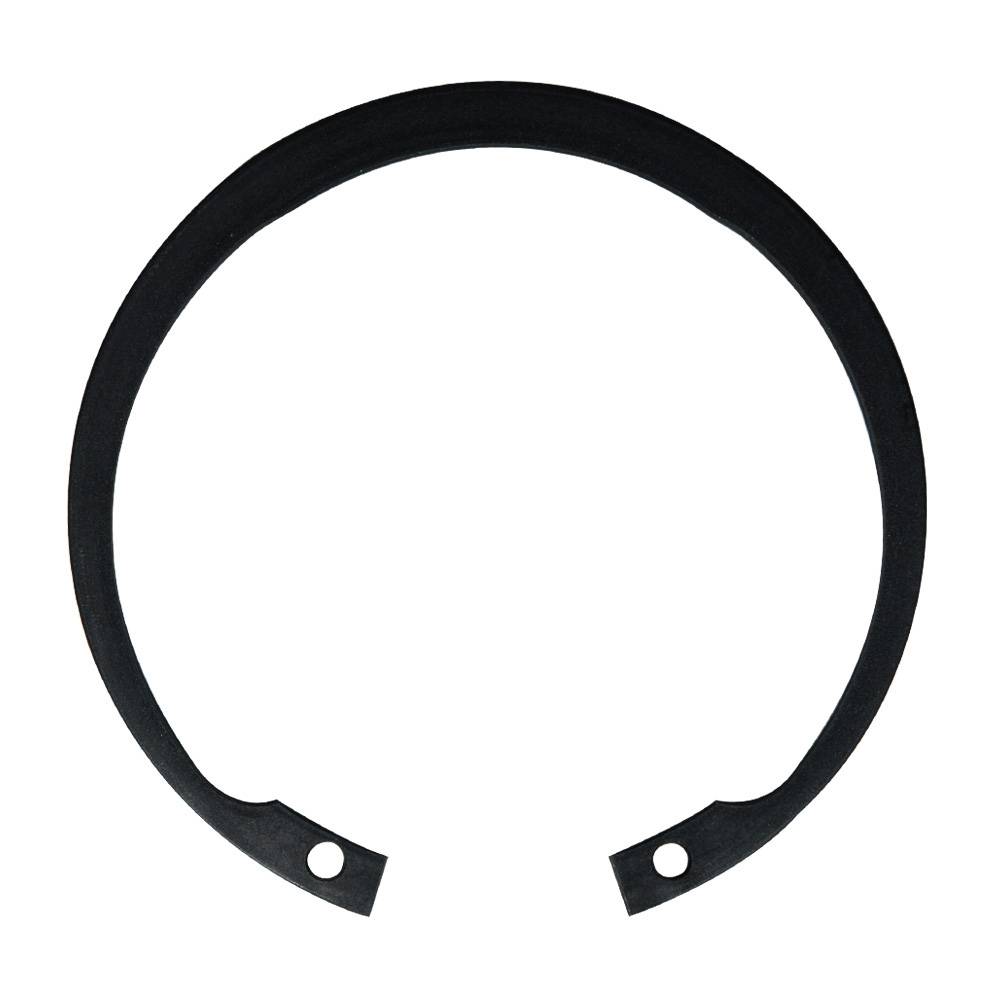

Internal, Heavy Duty, Tapered Section |
0.250
|
426
|
190
|
0.280
|
0.025
|
0.015
|
0.268
|
0.020
|
1
| - |
|
|
RSHE-031-CSOP-BX
Internal, Heavy Duty, Tapered Section |
0.312
|
538
|
240
|
0.346
|
0.043
|
0.015
|
0.330
|
0.020
|
1
| - |
|
|
RSHE-037-CSOP-BX
Internal, Heavy Duty, Tapered Section |
0.375
|
1066
|
350
|
0.415
|
0.040
|
0.025
|
0.397
|
0.029
|
1
| - |
|
|
RSHE-043-CSOP-BX
Internal, Heavy Duty, Tapered Section |
0.438
|
1238
|
440
|
0.482
|
0.049
|
0.025
|
0.461
|
0.029
|
1
| - |
|
|
RSHE-045-CSOP-BX
Internal, Heavy Duty, Tapered Section |
0.453
|
1299
|
460
|
0.498
|
0.050
|
0.025
|
0.477
|
0.029
|
1
| - |
|
|
RSHE-050-CSOP-BX
Internal, Heavy Duty, Tapered Section |
0.500
|
2010
|
510
|
0.548
|
0.053
|
0.035
|
0.530
|
0.039
|
1
| - |
|
|
RSHE-051-CSOP-BX
Internal, Heavy Duty, Tapered Section |
0.512
|
2060
|
520
|
0.560
|
0.053
|
0.035
|
0.542
|
0.039
|
1
| - |
|
|
RSHE-056-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.562
|
2253
|
710
|
0.620
|
0.053
|
0.035
|
0.596
|
0.039
|
1
| - |
|
|
RSHE-062-CSOP-BX
Internal, Heavy Duty, Tapered Section |
0.625
|
2507
|
1050
|
0.694
|
0.060
|
0.035
|
0.665
|
0.039
|
1
| - |
|
|
RSHE-068-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.688
|
2741
|
1280
|
0.763
|
0.063
|
0.035
|
0.732
|
0.039
|
1
| - |
|
|
RSHE-075-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.750
|
3045
|
1460
|
0.831
|
0.070
|
0.035
|
0.796
|
0.039
|
1
| - |
|
|
RSHE-077-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.777
|
4618
|
1580
|
0.859
|
0.074
|
0.042
|
0.825
|
0.046
|
1
| - |
|
|
RSHE-081-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.812
|
4872
|
1710
|
0.901
|
0.077
|
0.042
|
0.862
|
0.046
|
1
| - |
|
|
RSHE-086-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.866
|
5177
|
1980
|
0.961
|
0.081
|
0.042
|
0.920
|
0.046
|
1
| - |
|
|
RSHE-087-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.875
|
5227
|
2080
|
0.971
|
0.084
|
0.042
|
0.931
|
0.046
|
1
| - |
|
|
RSHE-090-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.901
|
5430
|
2200
|
1.000
|
0.087
|
0.042
|
0.959
|
0.046
|
1
| - |
|
|
RSHE-093-CSOP-TW
Internal, Heavy Duty, Tapered Section |
0.938
|
5684
|
2450
|
1.041
|
0.091
|
0.042
|
1.000
|
0.046
|
1
| - |
|
|
RSHE-100-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.000
|
6039
|
2800
|
1.111
|
0.104
|
0.042
|
1.066
|
0.046
|
1
| - |
|
|
RSHE-102-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.023
|
6141
|
3000
|
1.136
|
0.106
|
0.042
|
1.091
|
0.046
|
1
| - |
|
|
RSHE-106-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.062
|
7562
|
3050
|
1.180
|
0.110
|
0.050
|
1.130
|
0.056
|
1
| - |
|
|
RSHE-112-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.125
|
8019
|
3400
|
1.249
|
0.116
|
0.050
|
1.197
|
0.056
|
1
| - |
|
|
RSHE-118-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.188
|
8526
|
3700
|
1.319
|
0.120
|
0.050
|
1.262
|
0.056
|
1
| - |
|
|
RSHE-125-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.250
|
8932
|
4250
|
1.388
|
0.124
|
0.050
|
1.330
|
0.056
|
1
| - |
|
|
RSHE-131-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.312
|
9440
|
4700
|
1.456
|
0.130
|
0.050
|
1.396
|
0.056
|
1
| - |
|
|
RSHE-137-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.375
|
9846
|
5050
|
1.526
|
0.130
|
0.050
|
1.461
|
0.056
|
1
| - |
|
|
RSHE-143-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.438
|
10353
|
5500
|
1.596
|
0.133
|
0.050
|
1.528
|
0.056
|
1
| - |
|
|
RSHE-145-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.456
|
10455
|
5700
|
1.616
|
0.133
|
0.050
|
1.548
|
0.056
|
1
| - |
|
|
RSHE-150-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.500
|
10708
|
6000
|
1.660
|
0.133
|
0.050
|
1.594
|
0.056
|
1
| - |
|
|
RSHE-156-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.562
|
13906
|
6350
|
1.734
|
0.157
|
0.062
|
1.658
|
0.068
|
1
| - |
|
|
RSHE-162-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.625
|
14413
|
6900
|
1.804
|
0.164
|
0.062
|
1.725
|
0.068
|
1
| - |
|
|
RSHE-165-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.653
|
14718
|
7200
|
1.835
|
0.167
|
0.062
|
1.755
|
0.068
|
1
| - |
|
|
RSHE-168-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.688
|
15022
|
7450
|
1.874
|
0.170
|
0.062
|
1.792
|
0.068
|
1
| - |
|
|
RSHE-175-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.750
|
15580
|
8050
|
1.942
|
0.170
|
0.062
|
1.858
|
0.068
|
1
| - |
|
|
RSHE-181-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.812
|
16139
|
8450
|
2.012
|
0.170
|
0.062
|
1.922
|
0.068
|
1
| - |
|
|
RSHE-185-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.850
|
16443
|
8750
|
2.054
|
0.170
|
0.062
|
1.962
|
0.068
|
1
| - |
|
|
RSHE-187-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.875
|
16697
|
9050
|
2.072
|
0.170
|
0.062
|
1.989
|
0.068
|
1
| - |
|
|
RSHE-193-CSOP-TW
Internal, Heavy Duty, Tapered Section |
1.938
|
17255
|
9700
|
2.141
|
0.170
|
0.062
|
2.056
|
0.068
|
1
| - |
|
|
RSHE-200-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.000
|
17763
|
10300
|
2.210
|
0.170
|
0.062
|
2.122
|
0.068
|
1
| - |
|
|
RSHE-206-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.062
|
23091
|
10850
|
2.280
|
0.228
|
0.078
|
2.186
|
0.086
|
1
| - |
|
|
RSHE-212-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.125
|
23751
|
11350
|
2.350
|
0.228
|
0.078
|
2.251
|
0.086
|
1
| - |
|
|
RSHE-218-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.188
|
24461
|
12050
|
2.415
|
0.228
|
0.078
|
2.318
|
0.086
|
1
| - |
|
|
RSHE-225-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.250
|
25223
|
12600
|
2.490
|
0.228
|
0.078
|
2.382
|
0.086
|
1
| - |
|
|
RSHE-231-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.312
|
25832
|
13550
|
2.560
|
0.228
|
0.078
|
2.450
|
0.086
|
1
| - |
|
|
RSHE-237-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.375
|
26542
|
14300
|
2.630
|
0.228
|
0.078
|
2.517
|
0.086
|
1
| - |
|
|
RSHE-244-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.440
|
27304
|
14900
|
2.702
|
0.228
|
0.078
|
2.584
|
0.086
|
1
| - |
|
|
RSHE-250-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.500
|
28014
|
15650
|
2.775
|
0.210
|
0.078
|
2.648
|
0.086
|
1
| - |
|
|
RSHE-256-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.562
|
34206
|
16500
|
2.844
|
0.260
|
0.093
|
2.714
|
0.103
|
1
| - |
|
|
RSHE-262-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.625
|
35068
|
17350
|
2.910
|
0.260
|
0.093
|
2.781
|
0.103
|
1
| - |
|
|
RSHE-268-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.688
|
35931
|
18250
|
2.980
|
0.260
|
0.093
|
2.848
|
0.103
|
1
| - |
|
|
RSHE-275-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.750
|
36642
|
19200
|
3.050
|
0.260
|
0.093
|
2.914
|
0.103
|
1
| - |
|
|
RSHE-281-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.812
|
37504
|
20050
|
3.121
|
0.260
|
0.093
|
2.980
|
0.103
|
1
| - |
|
|
RSHE-287-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.875
|
38367
|
21500
|
3.191
|
0.260
|
0.093
|
3.051
|
0.103
|
1
| - |
|
|
RSHE-300-CSOP-TW
Internal, Heavy Duty, Tapered Section |
2.953
|
40093
|
23150
|
3.325
|
0.260
|
0.093
|
3.135
|
0.103
|
1
| - |
