To request a quote, sample, CAD model, or to customize a part for your application, click the desired part number from the table below.
The Smalley part database is not material-specific. The part you have searched for may be available in carbon steel or stainless steel. Please specify the desired material when requesting a quote or samples:
- For Spirolox, Constant Section, and Hoopster rings, add "-S02" to designate 302 stainless steel (Example: VH-100-S02)
- For Spriolox, add "-S16" to designate 316 stainless steel. (Example: VH-100-S16)
- Tapered Section Rings are only available in carbon steel.
- For wave springs, add "-S17" to designate 17-7 stainless steel. (Example: C150-L2-S17).
*Please note for wave springs: the Free Height listed is a reference dimension, and Spring Rate listed is a theoretical dimension.
Currently viewing imperial results
| Preview Image | Part Number | Application Diameter (in) / | Ring Shear (lb) / | Groove Yield (lb) / | Ring Diameter (in) / | Radial Wall (in) / | Ring Thickness (in) / | Groove Diameter (in) / | Min Groove Width (in) / | Turns / | Crimp |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

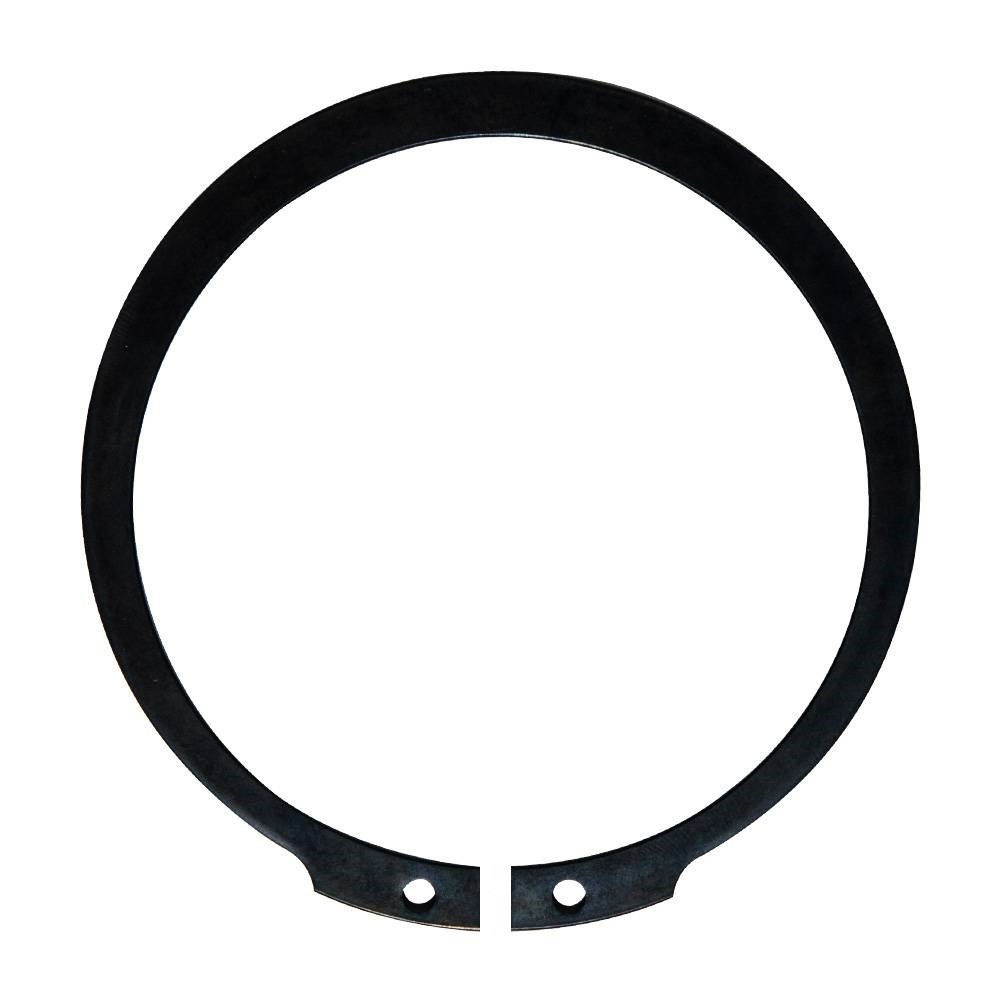

RSSE-025-CSOP-BX
External, Heavy Duty, Tapered Section |
0.250
|
599
|
175
|
0.225
|
0.035
|
0.025
|
0.230
|
0.029
|
1
| - |
|
|
RSSE-027-CSOP-BX
External, Heavy Duty, Tapered Section |
0.276
|
660
|
195
|
0.250
|
0.035
|
0.025
|
0.255
|
0.029
|
1
| - |
|
|
RSSE-028-CSOP-BX
External, Heavy Duty, Tapered Section |
0.281
|
670
|
200
|
0.256
|
0.038
|
0.025
|
0.261
|
0.029
|
1
| - |
|
|
RSSE-031-CSOP-BX
External, Heavy Duty, Tapered Section |
0.312
|
751
|
240
|
0.281
|
0.040
|
0.025
|
0.290
|
0.029
|
1
| - |
|
|
RSSE-034-CSOP-BX
External, Heavy Duty, Tapered Section |
0.344
|
812
|
265
|
0.309
|
0.042
|
0.025
|
0.321
|
0.029
|
1
| - |
|
|
RSSE-035-CSOP-BX
External, Heavy Duty, Tapered Section |
0.354
|
832
|
300
|
0.320
|
0.046
|
0.025
|
0.330
|
0.029
|
1
| - |
|
|
RSSE-037-CSOP-BX
External, Heavy Duty, Tapered Section |
0.375
|
883
|
320
|
0.338
|
0.050
|
0.025
|
0.352
|
0.029
|
1
| - |
|
|
RSSE-039-CSOP-BX
External, Heavy Duty, Tapered Section |
0.394
|
954
|
335
|
0.354
|
0.052
|
0.025
|
0.369
|
0.029
|
1
| - |
|
|
RSSE-040-CSOP-BX
External, Heavy Duty, Tapered Section |
0.406
|
964
|
350
|
0.366
|
0.054
|
0.025
|
0.382
|
0.029
|
1
| - |
|
|
RSSE-043-CSOP-BX
External, Heavy Duty, Tapered Section |
0.438
|
1035
|
400
|
0.395
|
0.055
|
0.025
|
0.412
|
0.029
|
1
| - |
|
|
RSSE-046-CSOP-BX
External, Heavy Duty, Tapered Section |
0.469
|
1117
|
450
|
0.428
|
0.060
|
0.025
|
0.443
|
0.029
|
1
| - |
|
|
RSSE-050-CSOP-BX
External, Heavy Duty, Tapered Section |
0.500
|
1675
|
550
|
0.461
|
0.065
|
0.035
|
0.468
|
0.039
|
1
| - |
|
|
RSSE-055-CSOP-BX
External, Heavy Duty, Tapered Section |
0.551
|
1800
|
600
|
0.509
|
0.053
|
0.035
|
0.519
|
0.039
|
1
| - |
|
|
RSSE-056-CSOP-BX
External, Heavy Duty, Tapered Section |
0.562
|
1878
|
650
|
0.521
|
0.072
|
0.035
|
0.530
|
0.039
|
1
| - |
|
|
RSSE-059-CSOP-BX
External, Heavy Duty, Tapered Section |
0.594
|
1979
|
750
|
0.550
|
0.076
|
0.035
|
0.559
|
0.039
|
1
| - |
|
|
RSSE-062-CSOP-BX
External, Heavy Duty, Tapered Section |
0.625
|
2091
|
800
|
0.579
|
0.080
|
0.035
|
0.588
|
0.039
|
1
| - |
|
|
RSSE-066-CSOP-BX
External, Heavy Duty, Tapered Section |
0.672
|
2233
|
950
|
0.621
|
0.082
|
0.035
|
0.631
|
0.039
|
1
| - |
|
|
RSSE-068-CSOP-BX
External, Heavy Duty, Tapered Section |
0.688
|
3451
|
1000
|
0.635
|
0.084
|
0.042
|
0.646
|
0.046
|
1
| - |
|
|
RSSE-075-CSOP-BX
External, Heavy Duty, Tapered Section |
0.750
|
3756
|
1200
|
0.693
|
0.092
|
0.042
|
0.704
|
0.046
|
1
| - |
|
|
RSSE-078-CSOP-BX
External, Heavy Duty, Tapered Section |
0.781
|
3959
|
1300
|
0.722
|
0.094
|
0.042
|
0.733
|
0.046
|
1
| - |
|
|
RSSE-081-CSOP-BX
External, Heavy Duty, Tapered Section |
0.812
|
4060
|
1450
|
0.751
|
0.096
|
0.042
|
0.762
|
0.046
|
1
| - |
|
|
RSSE-084-CSOP-BX
External, Heavy Duty, Tapered Section |
0.844
|
4200
|
1500
|
0.780
|
0.100
|
0.042
|
0.791
|
0.046
|
1
| - |
|
|
RSSE-087-CSOP-BX
External, Heavy Duty, Tapered Section |
0.875
|
4365
|
1650
|
0.810
|
0.104
|
0.042
|
0.821
|
0.046
|
1
| - |
|
|
RSSE-093-CSOP-BX
External, Heavy Duty, Tapered Section |
0.938
|
4720
|
1850
|
0.867
|
0.110
|
0.042
|
0.882
|
0.046
|
1
| - |
|
|
RSSE-098-CSOP-BX
External, Heavy Duty, Tapered Section |
0.984
|
4923
|
2000
|
0.910
|
0.114
|
0.042
|
0.926
|
0.046
|
1
| - |
|
|
RSSE-100-CSOP-BX
External, Heavy Duty, Tapered Section |
1.000
|
5024
|
2100
|
0.925
|
0.116
|
0.042
|
0.940
|
0.046
|
1
| - |
|
|
RSSE-102-CSOP-BX
External, Heavy Duty, Tapered Section |
1.023
|
5126
|
2250
|
0.946
|
0.118
|
0.042
|
0.961
|
0.046
|
1
| - |
|
|
RSSE-106-CSOP-BX
External, Heavy Duty, Tapered Section |
1.062
|
6293
|
2400
|
0.982
|
0.122
|
0.050
|
0.998
|
0.056
|
1
| - |
|
|
RSSE-112-CSOP-BX
External, Heavy Duty, Tapered Section |
1.125
|
6699
|
2600
|
1.041
|
0.128
|
0.050
|
1.059
|
0.056
|
1
| - |
|
|
RSSE-118-CSOP-BX
External, Heavy Duty, Tapered Section |
1.188
|
7105
|
2950
|
1.098
|
0.132
|
0.050
|
1.118
|
0.056
|
1
| - |
|
|
RSSE-125-CSOP-BX
External, Heavy Duty, Tapered Section |
1.250
|
7460
|
3250
|
1.156
|
0.140
|
0.050
|
1.176
|
0.056
|
1
| - |
|
|
RSSE-131-CSOP-BX
External, Heavy Duty, Tapered Section |
1.312
|
7866
|
3700
|
1.214
|
0.146
|
0.050
|
1.232
|
0.056
|
1
| - |
|
|
RSSE-137-CSOP-BX
External, Heavy Duty, Tapered Section |
1.375
|
8222
|
4100
|
1.272
|
0.152
|
0.050
|
1.291
|
0.056
|
1
| - |
|
|
RSSE-143-CSOP-TW
External, Heavy Duty, Tapered Section |
1.438
|
8628
|
4500
|
1.333
|
0.160
|
0.050
|
1.350
|
0.056
|
1
| - |
|
|
RSSE-150-CSOP-TW
External, Heavy Duty, Tapered Section |
1.500
|
8932
|
5000
|
1.387
|
0.168
|
0.050
|
1.406
|
0.056
|
1
| - |
|
|
RSSE-156-CSOP-TW
External, Heavy Duty, Tapered Section |
1.562
|
11571
|
5200
|
1.446
|
0.172
|
0.062
|
1.468
|
0.068
|
1
| - |
|
|
RSSE-162-CSOP-TW
External, Heavy Duty, Tapered Section |
1.625
|
12028
|
5500
|
1.503
|
0.180
|
0.062
|
1.529
|
0.068
|
1
| - |
|
|
RSSE-168-CSOP-TW
External, Heavy Duty, Tapered Section |
1.688
|
12535
|
5850
|
1.560
|
0.184
|
0.062
|
1.589
|
0.068
|
1
| - |
|
|
RSSE-175-CSOP-TW
External, Heavy Duty, Tapered Section |
1.750
|
12992
|
6200
|
1.618
|
0.188
|
0.062
|
1.650
|
0.068
|
1
| - |
|
|
RSSE-177-CSOP-TW
External, Heavy Duty, Tapered Section |
1.772
|
13144
|
6400
|
1.637
|
0.190
|
0.062
|
1.669
|
0.068
|
1
| - |
|
|
RSSE-181-CSOP-TW
External, Heavy Duty, Tapered Section |
1.812
|
13449
|
6650
|
1.675
|
0.192
|
0.062
|
1.708
|
0.068
|
1
| - |
|
|
RSSE-187-CSOP-TW
External, Heavy Duty, Tapered Section |
1.875
|
13906
|
7000
|
1.735
|
0.196
|
0.062
|
1.769
|
0.068
|
1
| - |
|
|
RSSE-196-CSOP-TW
External, Heavy Duty, Tapered Section |
1.969
|
14565
|
7800
|
1.819
|
0.200
|
0.062
|
1.857
|
0.068
|
1
| - |
|
|
RSSE-200-CSOP-TW
External, Heavy Duty, Tapered Section |
2.000
|
14819
|
8050
|
1.850
|
0.204
|
0.062
|
1.886
|
0.068
|
1
| - |
|
|
RSSE-206-CSOP-TW
External, Heavy Duty, Tapered Section |
2.062
|
19234
|
8450
|
1.906
|
0.208
|
0.078
|
1.946
|
0.086
|
1
| - |
|
|
RSSE-212-CSOP-TW
External, Heavy Duty, Tapered Section |
2.125
|
19793
|
9150
|
1.964
|
0.212
|
0.078
|
2.003
|
0.086
|
1
| - |
|
|
RSSE-215-CSOP-TW
External, Heavy Duty, Tapered Section |
2.156
|
20097
|
9450
|
1.993
|
0.212
|
0.078
|
2.032
|
0.086
|
1
| - |
|
|
RSSE-225-CSOP-TW
External, Heavy Duty, Tapered Section |
2.250
|
21011
|
10350
|
2.081
|
0.220
|
0.078
|
2.120
|
0.086
|
1
| - |
|
|
RSSE-231-CSOP-TW
External, Heavy Duty, Tapered Section |
2.312
|
21518
|
10950
|
2.139
|
0.222
|
0.078
|
2.178
|
0.086
|
1
| - |
|
|
RSSE-237-CSOP-TW
External, Heavy Duty, Tapered Section |
2.375
|
22127
|
11400
|
2.197
|
0.224
|
0.078
|
2.239
|
0.086
|
1
| - |
|
|
RSSE-243-CSOP-TW
External, Heavy Duty, Tapered Section |
2.438
|
22736
|
11900
|
2.255
|
0.228
|
0.078
|
2.299
|
0.086
|
1
| - |
|
|
RSSE-250-CSOP-PR
External, Heavy Duty, Tapered Section |
2.500
|
23345
|
12350
|
2.313
|
0.232
|
0.078
|
2.360
|
0.086
|
1
| - |
|
|
RSSE-255-CSOP-PR
External, Heavy Duty, Tapered Section |
2.559
|
23853
|
12650
|
2.377
|
0.238
|
0.078
|
2.419
|
0.086
|
1
| - |
|
|
RSSE-262-CSOP-PR
External, Heavy Duty, Tapered Section |
2.625
|
24462
|
13350
|
2.428
|
0.242
|
0.078
|
2.481
|
0.086
|
1
| - |
|
|
RSSE-268-CSOP-PR
External, Heavy Duty, Tapered Section |
2.688
|
25071
|
13850
|
2.485
|
0.246
|
0.078
|
2.541
|
0.086
|
1
| - |
|
|
RSSE-275-CSOP-PR
External, Heavy Duty, Tapered Section |
2.750
|
30551
|
14400
|
2.543
|
0.248
|
0.093
|
2.602
|
0.103
|
1
| - |
|
|
RSSE-287-CSOP-PR
External, Heavy Duty, Tapered Section |
2.875
|
31973
|
15650
|
2.659
|
0.256
|
0.093
|
2.721
|
0.103
|
1
| - |
|
|
RSSE-293-CSOP-PR
External, Heavy Duty, Tapered Section |
2.938
|
32683
|
16400
|
2.717
|
0.260
|
0.093
|
2.779
|
0.103
|
1
| - |
|
|
RSSE-300-CSOP-PR
External, Heavy Duty, Tapered Section |
3.000
|
33394
|
17200
|
2.775
|
0.260
|
0.093
|
2.838
|
0.103
|
1
| - |
