Nestawave™ Spring

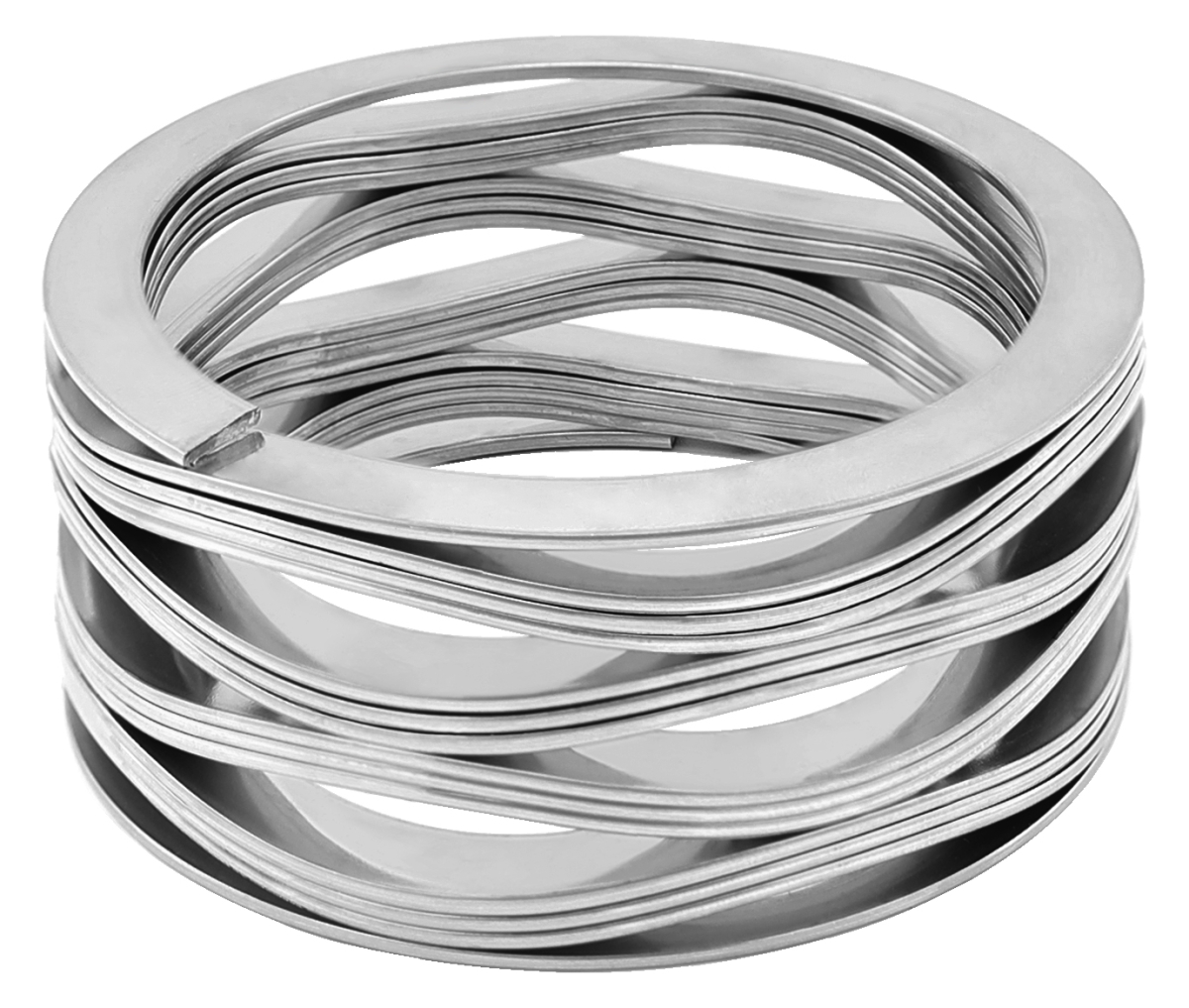

Smalley’s Nestawave™ springs are nested wave springs in a Crest-to-Crest^® configuration. Coiled from a single, continuous piece of wire, they offer flexibility in spring rate design. By combining the deflection characteristics of a Crest-to-Crest Wave Spring with the force output of a Spirawave^® Nested Spring, the Nestawave delivers high force and significant travel in a compact design. Ideal for replacing stacks of Belleville washers, Nestawave springs reduce the risk of improper installation and simplify assembly.

Benefits of Nestawave

High-force with significant travel
Offers spring rate flexibility
Produced from one continuous piece of wire for more consistent load properties
Ideal for replacing stacks of Belleville washers
- Eliminates chance of improper installation
- Saves on labor of manually stacking
- Reduces inventory needs—one part replaces many

Technical Specifications

1/4" to 20" (6.5 to 510 mm) diameter
Custom-made for your specific needs
Available in standard and exotic materials
Shim ends available

Pairing the Deflection of a Wave Spring & Force of a Nested Spring

Springs Compare

Crest-to-Crest® wave springs are flat wire compression springs designed to save space while delivering reliable force. With multiple waves per turn stacked in series, they offer greater deflection and lower spring rates in a compact axial form, reducing axial space requirements by up to 50% compared to traditional coil springs.

Nested Spirawave^® springs are manufactured with multiple turns coiled together in parallel, creating a low-profile design that significantly increases force output while maintaining a compact overall height—ideal for applications requiring high load capacity in limited space.

Get Started with Your Nestawave Spring Design

Nestawave Springs are available as a custom from Smalley. Whether you're developing a new solution or customizing a unique spring design, our engineering team is here to help. Need expert guidance before you get started? Email a Smalley engineer now.
